The linear bearing cage is an essential component of a linear rolling bearing built with the use of linear guides. The main task of the bearing cage is to hold the rolling elements inside the bearing on the guide's raceways in the correct operating position.

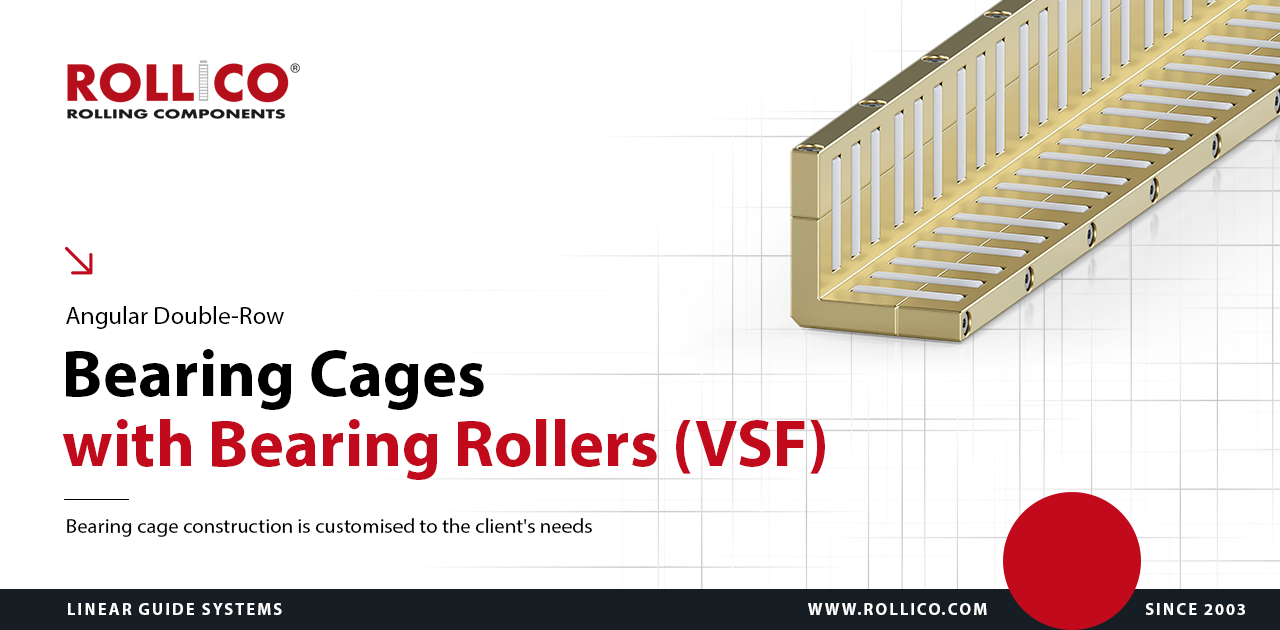

Angular double-row bearing cages with bearing rollers
Manufactured from brass and steel.
Working temperature up to do 150°C.
Applicable areas include profiled linear guides.
Bearing cage construction is customised directly according to the client's needs.
Technical drawing of VSF bearing cages
Dimension table of VSFbearing cages
Type/symbol
Dimensions
Load capacity *
A
DW
LW
t
t1
w
C
[N]
CO
[N]
VSF412
15
4
6
6
8
6
2 900
7 500
VSF612
18,5
6
5,8
9
11
8
3 400
10 800
VSF624
29,5
6
18
9
11
8
25 500
33 700
VSF1024
32
10
14
15
18
13
21 250
43 700
VSF1435
47
14
20
21
24
24
47 700
87 400
*) - Load capacity for 1 roller with the thrust force "F" in accordance to the drawing.
- C - dynamic load capacity, C0 - static load capacity
- The load capacity is calculated for guides with hardness of 60 +/- 2 HRc oand surface roughness of Ra<0.4.
- Load capacity of bearing cages is calculated on the basis of number of bearing needles mounted in the cage
- Length tolerance LK +0/-t
MsBrass
Precision
Sorting tolerance
up to 0.5 µm
