The linear bearing cage is an essential component of a linear rolling bearing built with the use of linear guides. The main task of the bearing cage is to hold the rolling elements inside the bearing on the guide's raceways in the correct operating position.

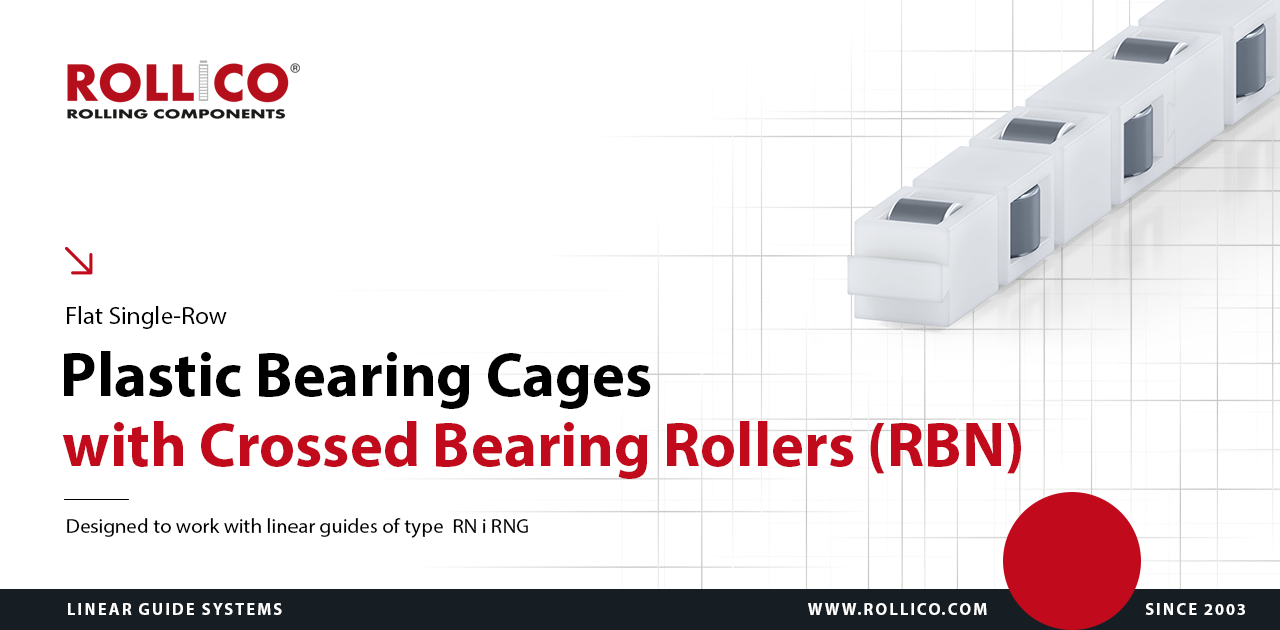

Flat plastic single-row bearing cages with crossed bearing rollers
Made of plastic
Work with RN, RNG, NG, LWRE and other cross roller slides
With roller holders
Working temperature up to 105°C
Applicable to automatics, mechatronics, optomechanics
Technical drawing of RBN bearing cages
Dimension table of RBN bearing cages
Roller
diameter
Ø
Type/symbol
Dimensions
Length
Load capacity *
DW
t
Lk1
[mm]
C
[N]
CO
[N]
4.5
RBN4
4.5
6.5
27
850
1250
6.5
RBN6
6.5
8.5
34
1800
2600
*) - Load capacity for 1 roller with the thrust force "F" in accordance to the drawing.
- C - dynamic load capacity, C0 - static load capacity
- The load capacity is calculated for guides with hardness of 60 +/- 2 HRC oand surface roughness of Ra<0.4.
- Load capacity of bearing cages is calculated on the basis of number of bearing needles mounted in the cage
- Length tolerance LK +0/-t
Weight table of RBN bearing cages
Table for weight values of bearing cages
(for the length of 100 rollers) [g]
Type/symbol
Plastic
RBN4
37
RBN6
117
Precision
Sorting tolerance
up to 0.5 µm
