Shaft support blocks
Made of aluminum; precision shaft support blocks provide stable and precise mounting offering a balance between rigidity and low weight, making them an ideal choice for high-dynamic applications with strict weight limitations.
IGWH

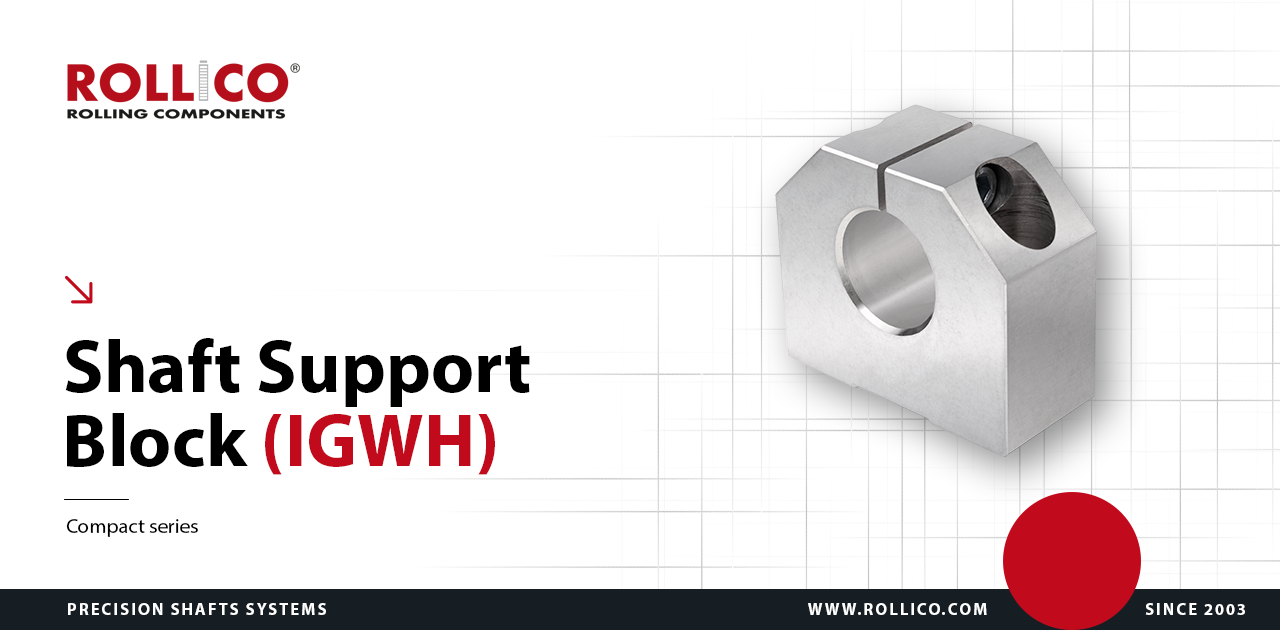

IGWH-type shaft support blocks
Compact series
Compact series
Technical drawing of IGWH type shaft support block
Dimension table of IGWH type shaft support blocks
|
Type |
Ød |
A |
B |
H |
h |
E |
Ød1 |
Ød2 |
M |
N1 |
N2 |
SW |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IGWH-06 |
6 |
32 |
16 |
27 |
15 |
22 |
4.2 |
8 |
M5 |
11 |
13 |
2.5 |
0.03 |
|
IGWH-08 |
8 |
32 |
16 |
27 |
16 |
22 |
4.2 |
8 |
M5 |
11 |
13 |
2.5 |
0.03 |
|
IGWH-10 |
10 |
40 |
18 |
33 |
18 |
27 |
5.2 |
10 |
M6 |
13 |
16 |
3 |
0.05 |
|
IGWH-12 |
12 |
40 |
18 |
33 |
19 |
27 |
5.2 |
10 |
M6 |
13 |
16 |
3 |
0.05 |
|
IGWH-14 |
14 |
45 |
20 |
38 |
20 |
32 |
5.2 |
10 |
M6 |
13 |
18 |
3 |
0.07 |
|
IGWH-16 |
16 |
45 |
20 |
38 |
22 |
32 |
5.2 |
10 |
M6 |
13 |
18 |
3 |
0.07 |
|
IGWH-20 |
20 |
53 |
24 |
45 |
25 |
39 |
6.8 |
11 |
M8 |
18 |
22 |
4 |
0.12 |
|
IGWH-25 |
25 |
62 |
28 |
54 |
31 |
44 |
8.6 |
15 |
M10 |
22 |
26 |
5 |
0.17 |
|
IGWH-30 |
30 |
67 |
30 |
60 |
34 |
49 |
8.6 |
15 |
M10 |
22 |
29 |
5 |
0.22 |
|
IGWH-40 |
40 |
87 |
40 |
76 |
42 |
66 |
10.3 |
18 |
M12 |
26 |
38 |
6 |
0.48 |
|
IGWH-50 |
50 |
103 |
50 |
92 |
50 |
80 |
14.25 |
20 |
M16 |
34 |
46 |
8 |
0.82 |
| All dimensions in the table are in [mm], unless stated otherwise. | |||||||||||||
AlAluminum
