Shaft support blocks
Made of aluminum; precision shaft support blocks provide stable and precise mounting offering a balance between rigidity and low weight, making them an ideal choice for high-dynamic applications with strict weight limitations.
IGWA
IGWA-type shaft support blocks
Standard series
Standard series

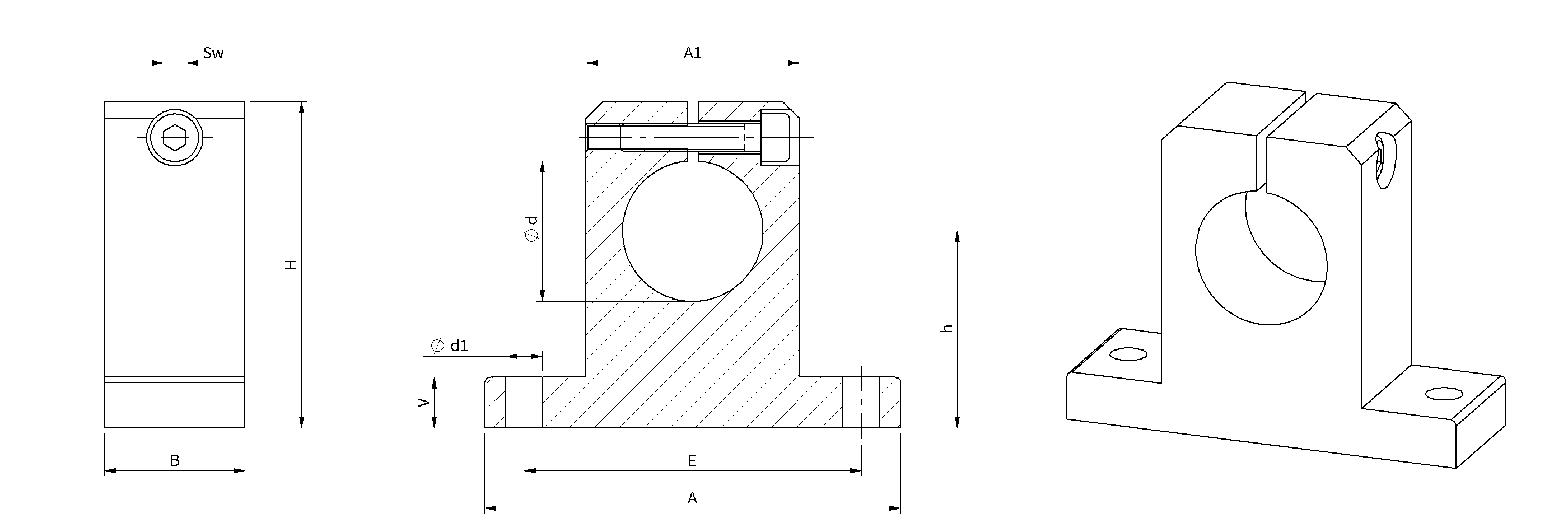

Technical drawing of IGWA type shaft support block
Dimension table of IGWA type shaft support blocks
|
Type |
Ød |
H |
h |
A |
A1 |
B |
E |
Ød1 |
V |
SW |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IGWA-08 |
8 |
27 |
15 |
32 |
16 |
10 |
25 |
4.5 |
5.0 |
2.5 |
0.01 |
|
IGWA-12 |
12 |
35 |
20 |
42 |
20 |
12 |
32 |
5.5 |
5.5 |
3 |
0.02 |
|
IGWA-16 |
16 |
42 |
25 |
50 |
26 |
16 |
40 |
5.5 |
6.5 |
3 |
0.03 |
|
IGWA-20 |
20 |
50 |
30 |
60 |
32 |
20 |
45 |
5.5 |
8.0 |
3 |
0.07 |
|
IGWA-25 |
25 |
58 |
35 |
74 |
38 |
25 |
60 |
6.6 |
9.0 |
4 |
0.14 |
|
IGWA-30 |
30 |
68 |
40 |
84 |
45 |
28 |
68 |
9.0 |
10.0 |
5 |
0.20 |
|
IGWA-40 |
40 |
86 |
50 |
108 |
56 |
32 |
86 |
11.0 |
12.0 |
6 |
0.48 |
|
IGWA-50 |
50 |
100 |
60 |
130 |
80 |
40 |
108 |
11.0 |
14.0 |
6 |
1.90 |
|
IGWA-60 |
60 |
124 |
75 |
160 |
100 |
48 |
132 |
13.5 |
15.0 |
8 |
3.60 |
| All dimensions in the table are in [mm], unless stated otherwise. | |||||||||||
