Shaft support blocks
Made of aluminum; precision shaft support blocks provide stable and precise mounting offering a balance between rigidity and low weight, making them an ideal choice for high-dynamic applications with strict weight limitations.

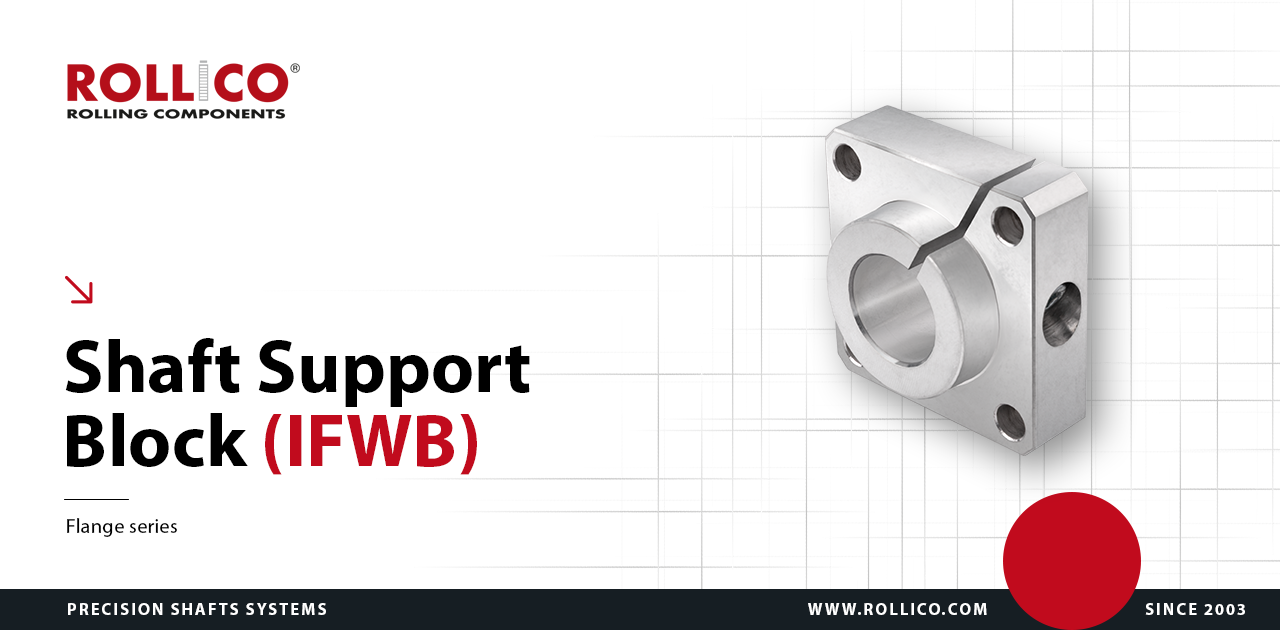

IFWB
IGWB-type shaft support blocks
Flange series
Flange series
Technical drawing of IFWB type shaft support block
Dimension table of IFWB type shaft support blocks
|
Type |
Ød |
A |
L |
ØD1 |
E |
V |
Ød1 |
SW |
Weight |
|---|---|---|---|---|---|---|---|---|---|
|
IFWB-12 |
12 |
40 |
20 |
23.5 |
30 |
12 |
5.5 |
3 |
0.06 |
|
IFWB-16 |
16 |
50 |
20 |
27.5 |
35 |
12 |
5.5 |
3 |
0.08 |
|
IFWB-20 |
20 |
50 |
23 |
33.5 |
38 |
14 |
6.6 |
4 |
0.10 |
|
IFWB-25 |
25 |
60 |
25 |
42.0 |
42 |
16 |
6.6 |
5 |
0.15 |
|
IFWB-30 |
30 |
70 |
30 |
49.5 |
54 |
19 |
9 |
6 |
0.30 |
|
IFWB-40 |
40 |
100 |
40 |
65.0 |
68 |
26 |
11 |
8 |
0.70 |
|
IFWB-50 |
50 |
100 |
50 |
75.0 |
75 |
36 |
11 |
8 |
1.20 |
| All dimensions in the table are in [mm], unless stated otherwise. | |||||||||
AlAluminum
