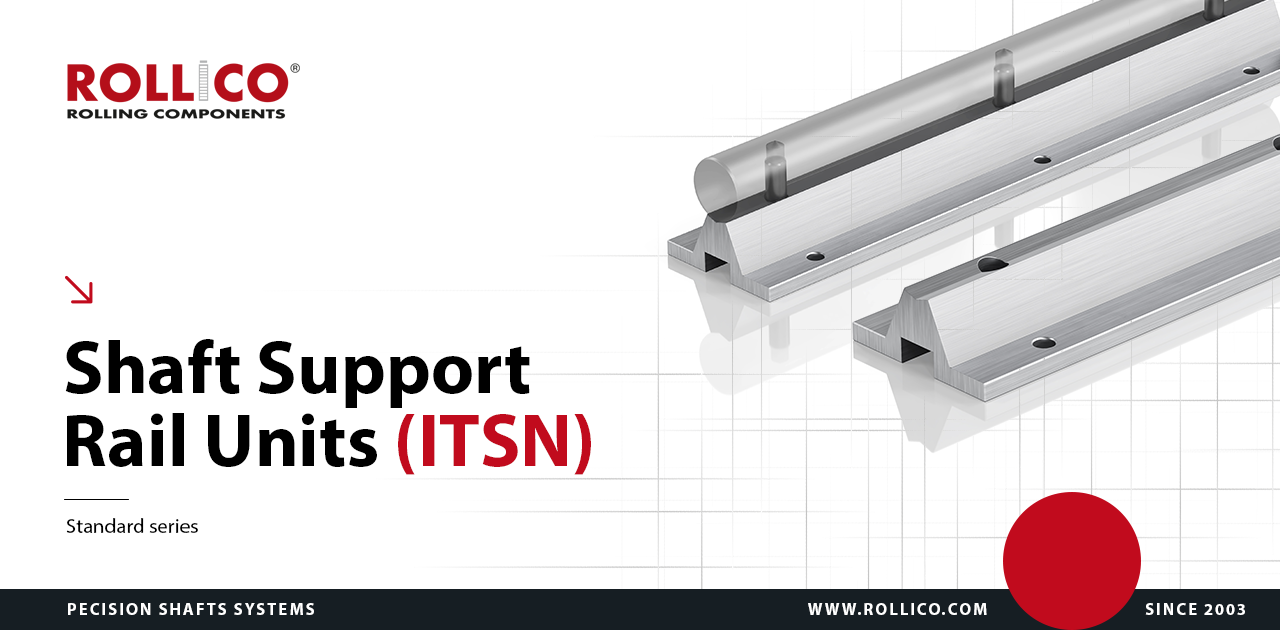

Shaft Support Rail Units
Shaft support rail units are essential for ensuring full stability along the entire length of the precision shaft. By providing continuous support, they effectively eliminate deflection and increase the overall rigidity of the system. These units are particularly well-suited for dynamic applications where low weight and high guiding precision are critical.
ITSN
Technical drawing of ITSN type shaft support rail unit
Dimension table of ITSN type shaft support rail unit
|
Type |
Ød |
A |
h |
H |
d2 |
V |
Ød1 |
Ød3 |
W |
(°) |
E |
T1 |
T2 |
LMAX 2) |
Weight3) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITSN-12 |
12 |
40 |
22 |
5 |
8.0 |
5.0 |
4.5 |
4.5 |
5.8 |
50 |
29 |
75 |
120 |
600 1) |
0.75 |
|
ITSN-16 |
16 |
45 |
26 |
5 |
9.5 |
6.0 |
5.5 |
5.5 |
7.0 |
50 |
33 |
100 |
150 |
3000 |
0.92 |
|
ITSN-20 |
20 |
52 |
32 |
6 |
11.0 |
6.5 |
6.6 |
6.6 |
8.3 |
50 |
37 |
100 |
150 |
3000 |
1.33 |
|
ITSN-25 |
25 |
57 |
36 |
6 |
14.0 |
8.5 |
6.6 |
9.0 |
10.8 |
50 |
42 |
120 |
200 |
3000 |
1.52 |
|
ITSN-30 |
30 |
69 |
42 |
7 |
17.0 |
10.5 |
9.0 |
11.0 |
11.0 |
50 |
51 |
150 |
200 |
3000 |
1.92 |
|
ITSN-40 |
40 |
73 |
50 |
8 |
17.0 |
10.5 |
9.0 |
11.0 |
15.0 |
50 |
55 |
200 |
300 |
3000 |
2.64 |
|
ITSN-50 |
50 |
84 |
60 |
9 |
19.0 |
12.5 |
11.0 |
13.0 |
19.0 |
46 |
63 |
200 |
300 |
600 1) |
3.55 |
| All dimensions in the table are provided in [mm], unless otherwise specified. Depending on the length of the precision shaft, the shaft support unit may consist of multiple segments. For version P1, maximum single support unit length LMAX = 1500 mm T5,T6 = min. 20 mm 1) Upon request, LMAX = 3700 mm. 2) Maximum length of a single support unit 3) Weight specified without shaft |
|||||||||||||||
Designation Method
|
Shaft support rail unit
|
ITSN
|
20
|
|
|||
|---|---|---|---|---|---|---|
| Series | ||||||
| Size |
