Recirculating units
Compact rolling modules which, when combined with linear guideways, eliminate the problem of limited stroke and ensure high precision as well as uniform load distribution in all directions.
SK/ SKD
General Information

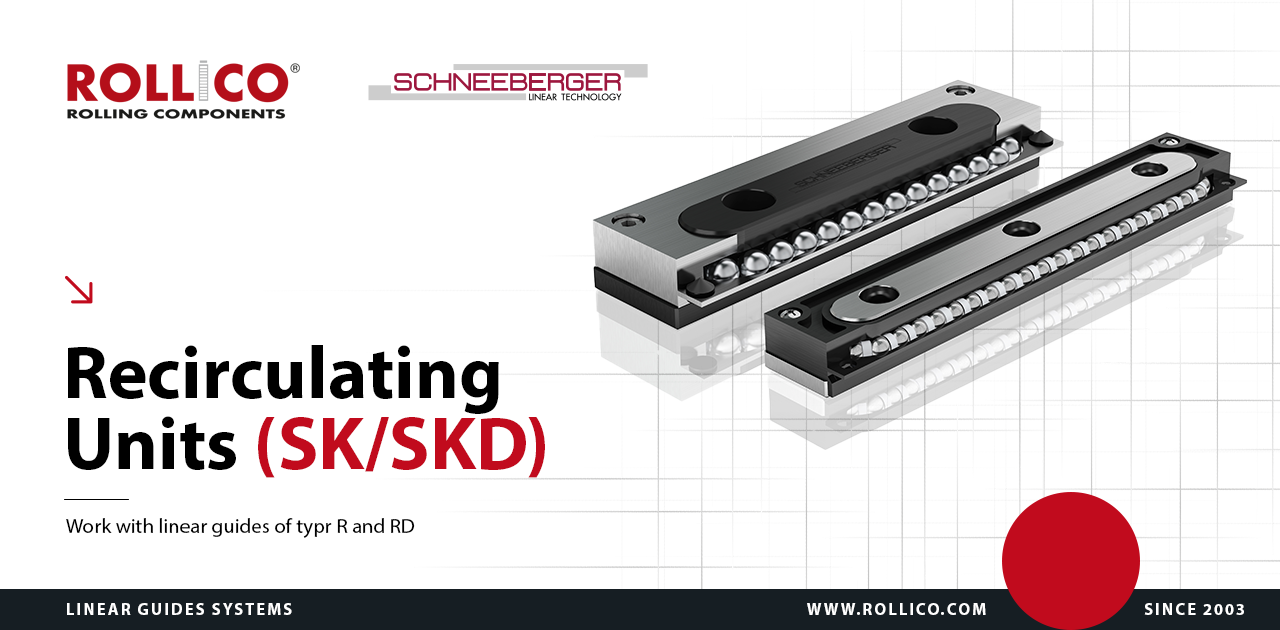

The SK-type recirculating unit, equipped with bearing balls, is a hardened and precision-ground component designed for use under light to medium loads. It is intended for use with Schneeberger linear guides of type R and/or RD. This solution is particularly suitable in applications where space is limited and load is equally distributed in all directions.
SK-type linear units in sizes 6 and 9 (and size 12 upon request) can be optionally equipped with damping elements (designated as SKD), which enhance motion smoothness, albeit with a slight reduction in permissible load capacity.
Technical Specifications
Technical drawing of SK type recirculating units
Dimension table of SK/SKD type recirculating units
|
Type and Size
|
Weight [g]
|
B
|
Dw
|
F
|
H
|
J
|
Kt
|
L
|
L1
|
L3
|
N
|
a
|
d
|
e
|
f
|
f1
|
g
|
m
|
o
|
C[N]
|
Additional Options
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SK
|
SKD
|
|||||||||||||||||||||
|
SK 1-022
|
5
|
4
|
1.5
|
8.4
|
7.25
|
6.9
|
9
|
22
|
10
|
-
|
4.8
|
0.3
|
3
|
M2
|
1.65
|
-
|
2.6
|
-
|
1.2
|
63
|
-
|
GP
|
|
SK 2-032
|
10
|
6
|
2
|
11
|
9.5
|
9
|
16
|
32
|
15
|
-
|
6
|
0.3
|
4.4
|
M3
|
2.55
|
-
|
4
|
-
|
1.9
|
135
|
-
|
GP
|
|
SK 3-075
|
45
|
8
|
3
|
16.9
|
14.4
|
13.8
|
48
|
75
|
25
|
12.5
|
9
|
0.5
|
6
|
M4
|
3.3
|
1.5
|
4.9
|
11.5
|
2.4
|
425
|
-
|
GP
|
|
SK 6-100
|
200
|
15
|
6
|
28.9
|
24.5
|
22.9
|
60
|
100
|
50
|
25
|
15
|
1
|
9.5
|
M6
|
5.2
|
2
|
9.8
|
19.7
|
4.4
|
715
|
650
|
GP
|
|
SK 6-150
|
300
|
102
|
150
|
2x50
|
1170
|
1100
|
GP
|
|||||||||||||||
|
SK 9-150
|
670
|
22
|
9
|
45.1
|
39
|
36.7
|
90
|
150
|
100
|
50
|
26
|
1.5
|
10.5
|
M8
|
6.8
|
3
|
15.8
|
32.4
|
6.3
|
1650
|
1500
|
GP
|
|
SK 9-200
|
940
|
144
|
200
|
2550
|
2400
|
GP
|
||||||||||||||||
|
SK 12-200
|
1470
|
28
|
12
|
57.1
|
49
|
45.9
|
120
|
200
|
100
|
50
|
32
|
2
|
13.5
|
M10
|
8.5
|
3
|
19.8
|
40.2
|
7.7
|
2860
|
2600
|
GP
|
