Precision shafts
Precision linear shafts represent an important category of linear guidance elements. In combination with shaft support blocks, housing units, linear ball bearings, and other accessories, they form a reliable and cost-effective linear motion system.
Linear systems based on precision shafts are widely used in variety of applications where, there is precise linear motion required- from automation and robotics to CNC machines and industrial positioning applications.
WZ

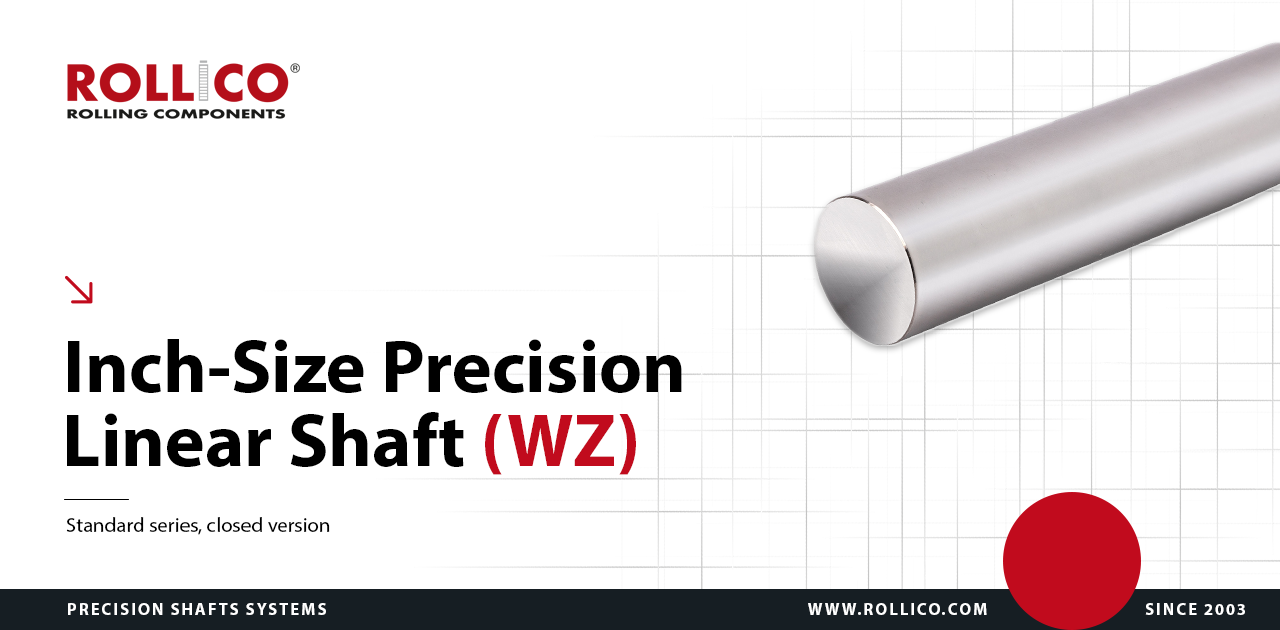

Precision inch-size linear shafts, designated as WZ are made of induction-hardened and ground Cf53 steel.
Key specifications of WZ series shafts:
Technical drawing of WZ type precision shafts
Dimension table of WZ type precision shafts
|
Type
|
Shaft's diameter Ød [inches] |
Shaft's diameter Ød [mm] |
L (max)
[mm] |
Weight
[kg/m] |
Diameter tol. "L" [µm] |
T1
[µm] |
T2 1)
[µm] |
T3 2)
[mm] |
Min. hardened layer thickness [mm] |
|---|---|---|---|---|---|---|---|---|---|
|
WZ1/4
|
1/4"
|
6.35
|
6000
|
0.249
|
-13 /-25
|
4
|
5
|
0.3
|
0.4
|
|
WZ3/8
|
3/8"
|
9.525
|
6000
|
0.559
|
-13 /-25
|
4
|
6
|
0.3
|
0.4
|
|
WZ1/2
|
1/2"
|
12.7
|
6000
|
0.994
|
-13 /-25
|
5
|
8
|
0.3
|
0.6
|
|
WZ5/8
|
5/8"
|
15.875
|
6000
|
1.554
|
-13 /-25
|
5
|
8
|
0.3
|
0.6
|
|
WZ3/4
|
3/4"
|
19.05
|
6000
|
2.237
|
-13 /-25
|
6
|
9
|
0.2
|
0.9
|
|
WZ1
|
1"
|
25.4
|
6000
|
3.978
|
-13 /-25
|
6
|
9
|
0.2
|
0.9
|
|
WZ1 1/8
|
1 1/8"
|
28.575
|
6000
|
5.034
|
-13 /-25
|
6
|
9
|
0.2
|
0.9
|
|
WZ1 1/4
|
1 1/4"
|
31.75
|
6000
|
6.215
|
-13 /-25
|
7
|
11
|
0.2
|
1.5
|
|
WZ1 3/8
|
1 3/8"
|
34.925
|
6000
|
7.520
|
-15 /-28
|
7
|
11
|
0.2
|
1.5
|
|
WZ1 1/2
|
1 1/2"
|
38.1
|
6000
|
8.950
|
-15 /-28
|
7
|
11
|
0.2
|
1.5
|
|
WZ2
|
2"
|
50.8
|
6000
|
15.911
|
-15 /-33
|
7
|
11
|
0.2
|
1.5
|
|
WZ2 1/2
|
2 1/2"
|
63.5
|
6000
|
24.860
|
-18 /-38
|
8
|
13
|
0.2
|
2.2
|
|
WZ3
|
3"
|
76.2
|
6000
|
35.799
|
-20 /-43
|
8
|
13
|
0.2
|
2.2
|
| 1) Diameter differential measurement over the length of 1000 mm 2) Measurement in accordance with DIN ISO 13012 |
|||||||||
We offer custom shaft cutting to any desired length as well as additional machining operations upon request.
Available machining options include:
Ordering Made Easy – Quick Cente
To streamline your experience, we offer our Quick Center system – a fast-track service that delivers cut-to-length and machined precision shafts within 2 business days.
