Linear housing units
Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.
ITGOI
ITGOE-type linear housing units

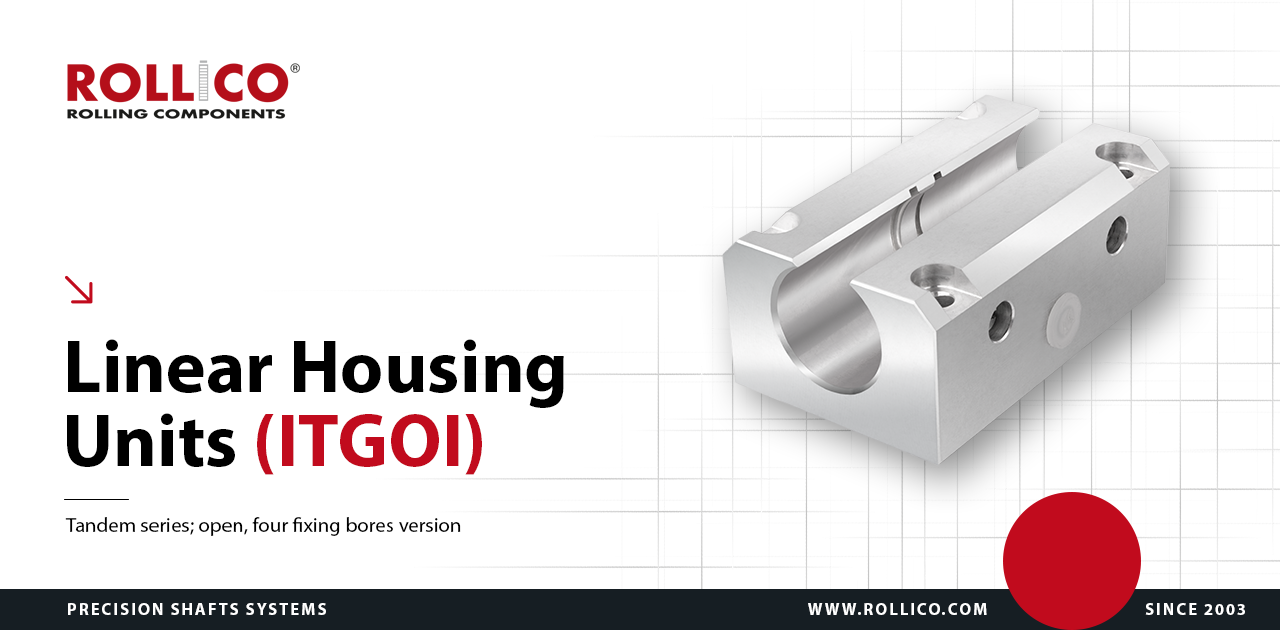

Tandem, open, four fixing bores version
Tandem, open, four fixing bores version
Technical drawing of ITGOI type linear housing unit
Note: The drawing shows the housing in an assembled form together with the linear ball bearing.
The product shape may slightly differ from the one shown in the photo/drawing.
Dimension table of ITGOI type linear housing unit
|
Type
|
Ød
|
ØD
|
H
|
h
+0.01 -0.02 |
A
|
A1
±0.02 |
L
|
E1
±0.15 |
E2
±0.15 |
E3
±0.2 |
N1
|
N2
|
N4
|
Ød1
|
Ød2
|
M
|
W 1)
|
Weight*
[kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITGOI-12
|
12
|
22
|
30
|
18
|
43
|
21.5
|
76
|
56
|
32
|
19.5
|
11
|
16.5
|
16.7
|
4.2
|
8
|
M5
|
7.5
|
0.22
|
|
ITGOI-16
|
16
|
26
|
35
|
22
|
53
|
26.5
|
84
|
64
|
40
|
21.5
|
13
|
21
|
22
|
5.2
|
10
|
M6
|
10
|
0.34
|
|
ITGOI-20
|
20
|
32
|
42
|
25
|
60
|
30
|
104
|
76
|
45
|
27
|
18
|
24
|
25
|
6.8
|
11
|
M8
|
10
|
0.62
|
|
ITGOI-25
|
25
|
40
|
51
|
30
|
78
|
39
|
130
|
94
|
60
|
33.5
|
22
|
29
|
31.5
|
8.6
|
15
|
M10
|
12.5
|
1.17
|
|
ITGOI-30
|
30
|
47
|
60
|
35
|
87
|
43.5
|
152
|
106
|
68
|
39.5
|
22
|
34
|
33
|
8.6
|
15
|
M10
|
12.5
|
1.68
|
|
ITGOI-40
|
40
|
62
|
77
|
45
|
108
|
54
|
176
|
124
|
86
|
45.5
|
26
|
44
|
43.5
|
10.3
|
18
|
M12
|
16.8
|
3.15
|
| All dimensions in the table are in [mm], unless stated otherwise. Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980. Load capacity as per the linear ball bearing specification. Lubrication port: M8x1. The linear bearing position is determined by a screw. 1) values for LME..UUOP 2) housing angle; note the angle of the bearing used * Weight refers to the housing unit including the linear ball bearing. |
||||||||||||||||||
Designation Method
|
Linear ball bearing
|
ITGOI
|
20
|
|
|
|---|---|---|---|---|
| Series | ||||
| Size |
|
Housing unit with linear ball bearing
|
ITGOI
|
20
|
LME_UU_OP
|
V |
|---|---|---|---|---|
| Series | ||||
| Size | ||||
| Acc. to the customer's request: LME_UU_OP, SBEO_UU, SPM_OPN_WW |
||||
| Additional front wipers | ||||
AlAluminum
