Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.

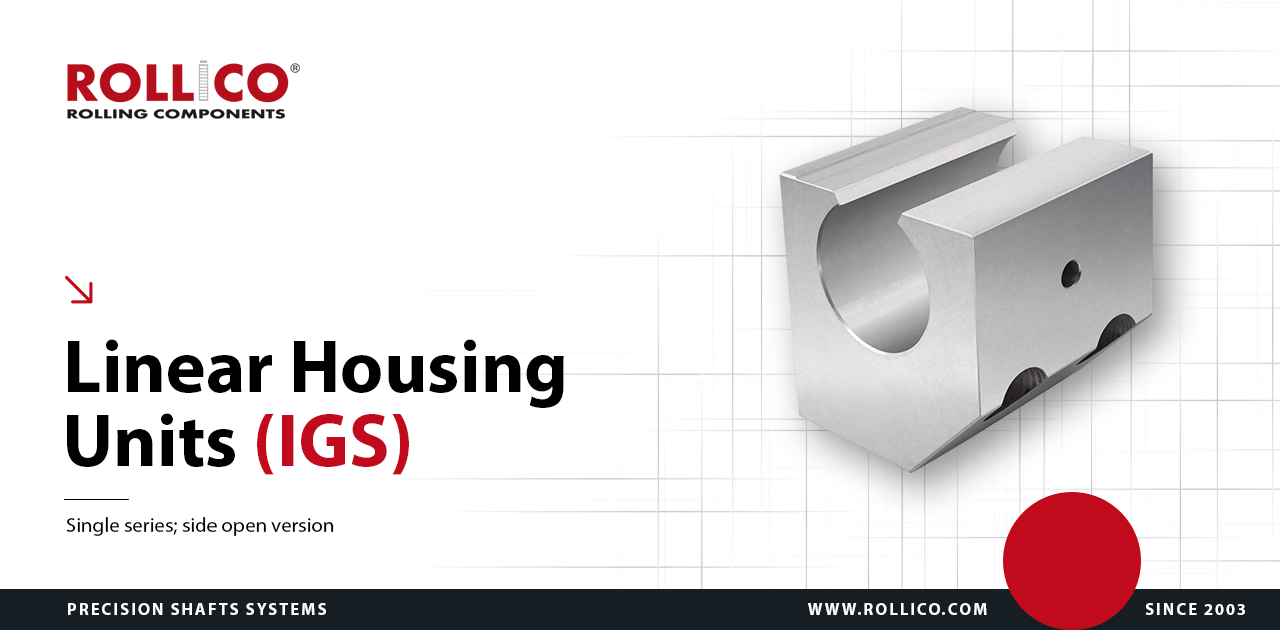

IGS-type linear housing units
Single, side, open version
Technical drawing of IGS type linear housing unit
Note: The drawing shows the housing in an assembled form together with the linear ball bearing.
The product shape may slightly differ from the one shown in the photo/drawing.
Dimension table of IGS type linear housing unit
Type
Ød
ØD
H
h +/-0.015
A
A1 ±0.02
L
E1
E2
N1
N2
N3
Ød1
Ød2
M
W1)
Weight*
[kg]
IGS-20
20
32
60
30
60
17
54
30
39
22
42
30
8.6
15
M10
10
0.42
IGS-25
25
40
72
35
75
21
67
36
49
26
50
35
10.3
18
M12
12.5
0.80
IGS-30
30
47
82
40
86
25
79
42
59
34
55
40
13.5
20
M16
12.5
1.20
IGS-40
40
62
100
45
110
32
91
48
75
43
67
45
17.5
26
M20
16.8
2.00
All dimensions in the table are in [mm], unless stated otherwise.
Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980.
Load capacity as per the linear ball bearing specification.
Lubrication port: M8x1.
The linear bearing position is determined by a screw. 1) values for LME..UUOP 2) housing angle; note the angle of the bearing used
* Weight refers to the housing unit including the linear ball bearing.
Designation Method
Linear ball bearing
IGS
20
Series
Size
Housing unit with linear ball bearing
IGS
20
LME_UU_OP
V
Series
Size
Acc. to the customer's request:
LME_UU_OP, SBEO_UU, SPM_OPN_WW
Additional front wipers
AlAluminum
Precision
Sorting tolerance
up to 0.5 µm
