Linear housing units
Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.
IGC

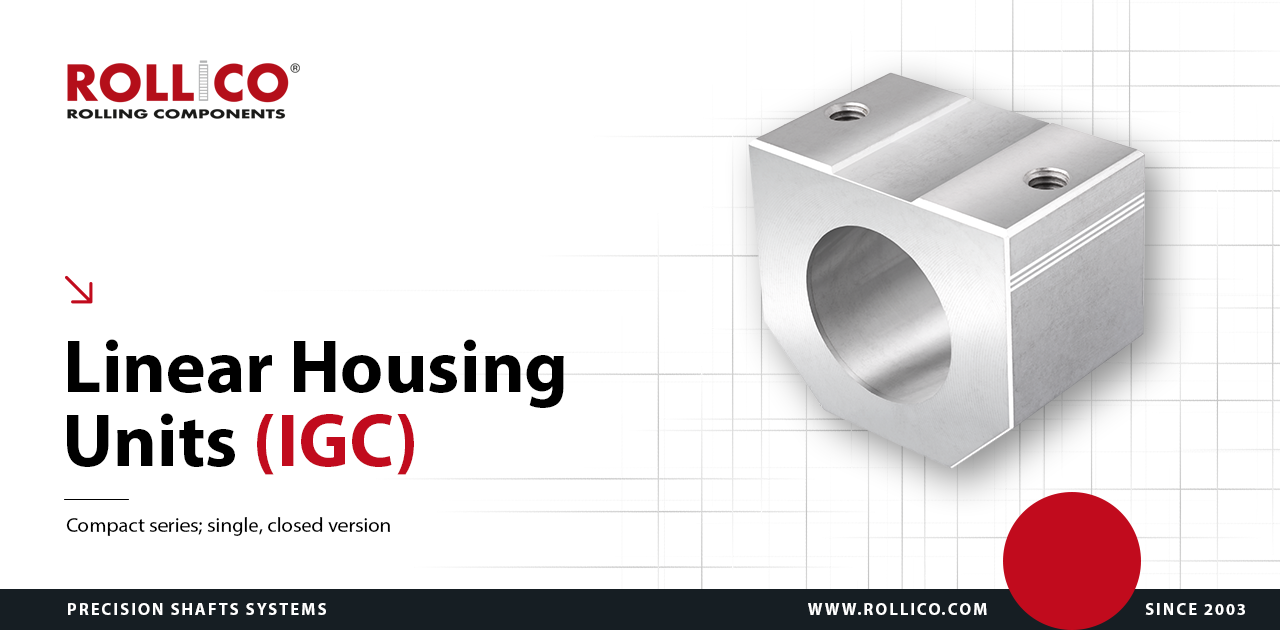

IGC-type linear housing units
Compact series, single closed version
Compact series, single closed version
Technical drawing of IGC type linear housing unit
Dimension table of IGC type linear housing unit
|
Type
|
Ød
|
ØD
|
H
|
h
+0.01 -0.02 |
A
|
L
|
L1
|
T3
|
E1
|
E2
+/- 0.15 |
N1
|
N2
|
Ød1
|
M
|
Weight*
[kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IGC-06
|
6
|
12
|
27
|
13
|
32
|
22
|
4
|
9
|
11
|
23
|
9
|
13
|
3.4
|
M4
|
0.4
|
|
IGC-08
|
8
|
15
|
27
|
14
|
32
|
24
|
6
|
9
|
12
|
23
|
9
|
13
|
3.4
|
M4
|
0.5
|
|
IGC-10
|
10
|
17
|
33
|
16
|
40
|
26
|
6
|
11
|
13
|
29
|
11
|
16
|
4.3
|
M5
|
0.7
|
|
IGC-12
|
12
|
19
|
33
|
17
|
40
|
28
|
6
|
11
|
14
|
29
|
11
|
16
|
4.3
|
M5
|
0.9
|
|
IGC-14
|
14
|
21
|
36.5
|
18
|
43
|
28
|
6
|
13
|
14
|
34
|
11
|
18
|
4.3
|
M5
|
0.10
|
|
IGC-16
|
16
|
24
|
38
|
19
|
45
|
30
|
7
|
13
|
15
|
34
|
11
|
18
|
4.3
|
M5
|
0.13
|
|
IGC-20
|
20
|
28
|
45
|
23
|
53
|
30
|
7
|
15
|
15
|
40
|
13
|
22
|
5.3
|
M6
|
0.15
|
|
IGC-25
|
25
|
35
|
54
|
27
|
62
|
40
|
8
|
17.5
|
20
|
48
|
18
|
26
|
6.6
|
M8
|
0.30
|
|
IGC-30
|
30
|
40
|
60
|
30
|
67
|
50
|
8
|
18
|
25
|
53
|
18
|
29
|
6.6
|
M8
|
0.46
|
|
IGC-40
|
40
|
52
|
76
|
29
|
87
|
60
|
9
|
23
|
30
|
69
|
22
|
38
|
8.4
|
M10
|
0.88
|
|
IGC-50
|
50
|
62
|
92
|
47
|
103
|
70
|
9
|
28
|
35
|
82
|
26
|
46
|
10.5
|
M12
|
1.25
|
| All dimensions in the table are in [mm], unless stated otherwise. Set screws in accordance with DIN 912-8.8; spring washers per DIN 7980. Load capacity as per the linear ball bearing specification Lubrication port: M8x1 1) Lubrication nipple per DIN 3405 * Weight refers to the housing including the linear ball bearing |
|||||||||||||||
Designation Method
|
Linear ball bearing
|
IGC
|
20
|
|
|---|---|---|---|
| Series | |||
| Size |
|
Housing unit with linear ball bearing
|
IGC
|
20
|
KH_PP
|
|---|---|---|---|
| Series | |||
| Size | |||
| Acc. to the customer's request: KH; KH_PP; EXC; EXC_PP; EXCE; EXCE_PP |
|||
