Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.

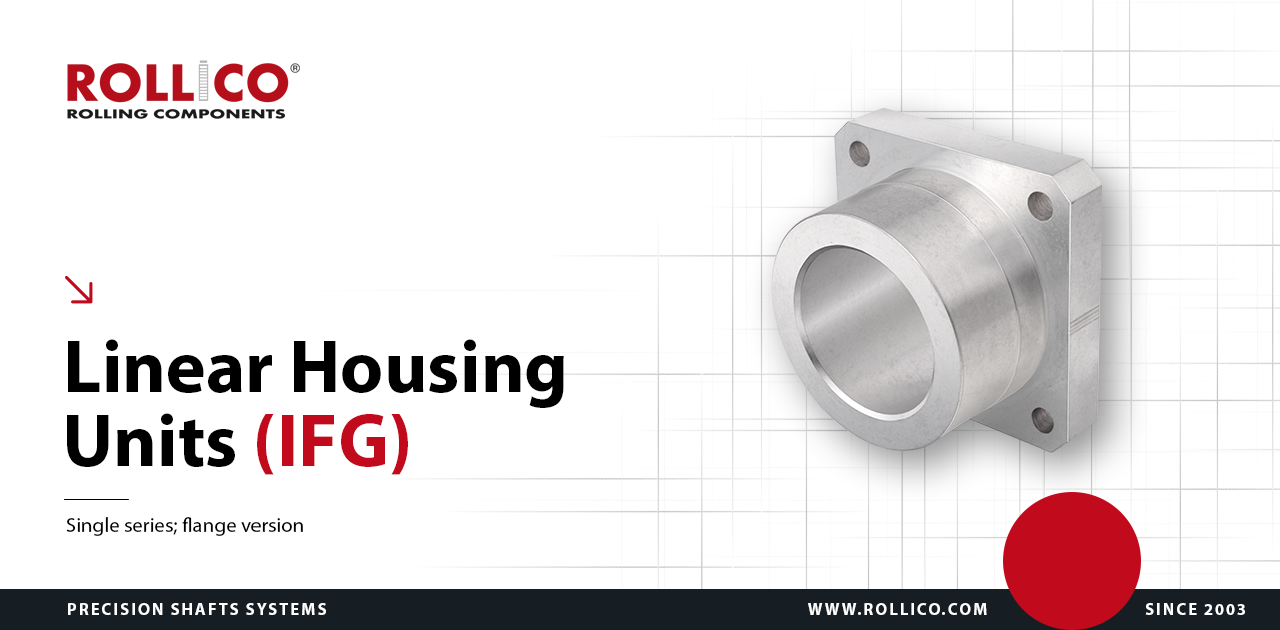

IFG-type linear housing units
Single, flange version
Technical drawing of IFG type linear housing unit
Note: The drawing shows the housing in an assembled form together with the linear ball bearing.
The product shape may slightly differ from the one shown in the photo/drawing.
Dimension table of IFG type linear housing unit
Type
Ød
ØD
ØD1
g7
A
L
L1
E
V
Ød1
Weight*
[kg]
IFG-12
12
22
32
40
32
22
30
6
5.5
0.12
IFG-16
16
26
38
50
36
24
35
8
5.5
0.17
IFG-20
20
32
46
60
45
30
42
10
6.6
0.33
IFG-25
25
40
58
70
58
42
54
12
6.6
0.68
IFG-30
30
47
66
80
68
50
60
14
9
1.03
IFG-40
40
62
90
100
80
59
78
16
11
2.00
All dimensions in the table are in [mm], unless stated otherwise.
Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980.
Load capacity as per the linear ball bearing specification.
Lubrication port: M8x1.
The linear bearing position is determined by a retaining ring in accordance with DIN 472.
* Weight refers to the housing unit including the linear ball bearing.
