Linear housing units
Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.
IALGS

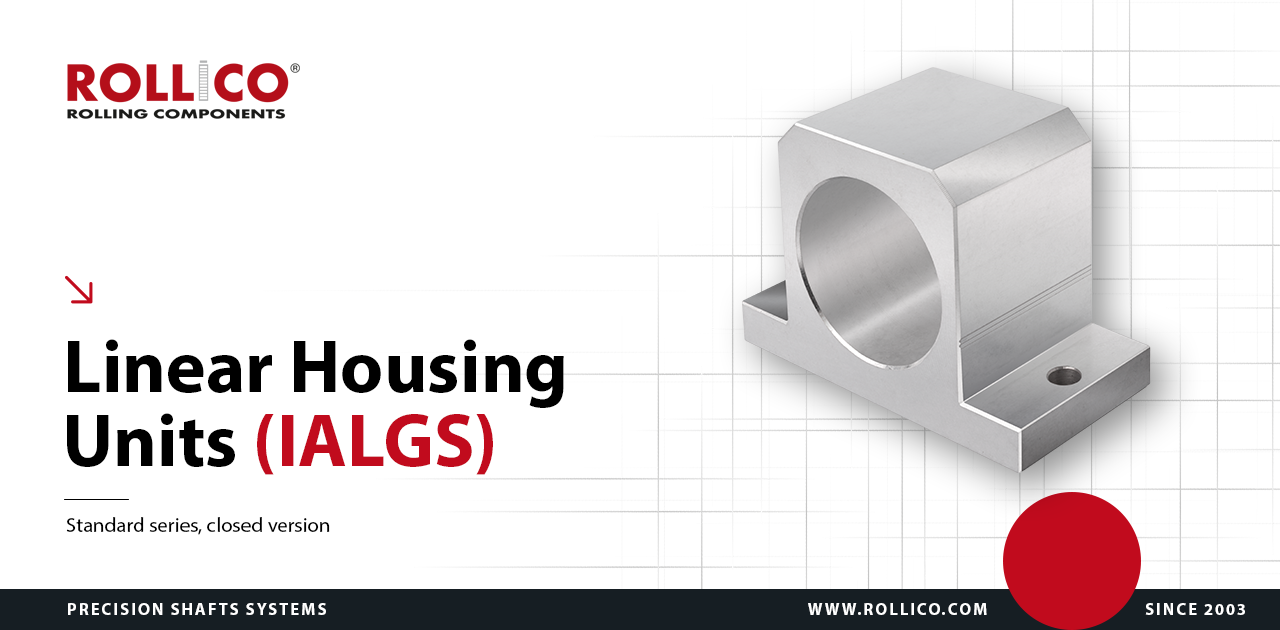

IALGS-type linear housing units
Standard closed version
Standard closed version
Technical drawing of IALGS type linear housing unit
Dimension table of IALGS type linear housing unit
|
Type
|
Ød
|
ØD
|
H
|
h
±0.015 |
A
|
A1
|
L
|
L1
|
T1
|
E1
|
E2
±0.15 |
Ød1
|
Weight*
[kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IALGS-12
|
12
|
22
|
35
|
18
|
52
|
30
|
32
|
20
|
6
|
10
|
42
|
5.3
|
0.09
|
|
IALGS-16
|
16
|
26
|
40.5
|
22
|
56
|
34
|
36
|
22
|
7
|
11
|
46
|
5.3
|
0.12
|
|
IALGS-20
|
20
|
32
|
48
|
25
|
70
|
40
|
45
|
28
|
8
|
14
|
58
|
6.4
|
0.25
|
|
IALGS-25
|
25
|
40
|
58
|
30
|
80
|
50
|
58
|
40
|
10
|
20
|
68
|
6.4
|
0.49
|
|
IALGS-30
|
30
|
47
|
67
|
35
|
88
|
58
|
68
|
48
|
10
|
24
|
76
|
6.4
|
0.78
|
|
IALGS-40
|
40
|
62
|
85
|
45
|
108
|
74
|
80
|
56
|
12
|
28
|
94
|
8.4
|
1.28
|
|
IALGS-50
|
50
|
75
|
100
|
50
|
135
|
96
|
100
|
72
|
12
|
36
|
116
|
10.5
|
1.70
|
| All dimensions in the table are in [mm], unless stated otherwise. Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980. Load capacity as per the linear ball bearing specification. Lubrication port: M8x1 * Weight refers to the housing unit including the linear ball bearing. |
|||||||||||||
Designation Method
|
Linear ball bearing
|
IALGS
|
20
|
|
|---|---|---|---|
| Series | |||
| Size |
|
Housing unit with linear ball bearing
|
IALGS
|
20
|
LME_UU
|
|---|---|---|---|
| Series | |||
| Size | |||
| Acc. to the customer's request: LME_UU, SBE_UU,SPM_UU |
|||
