Linear ball bearings
Linear ball bearings are a crucial component of any linear guidance system. They enable smooth, precise, and failure-free motion along precision shafts, while minimizing friction and component wear.
VD

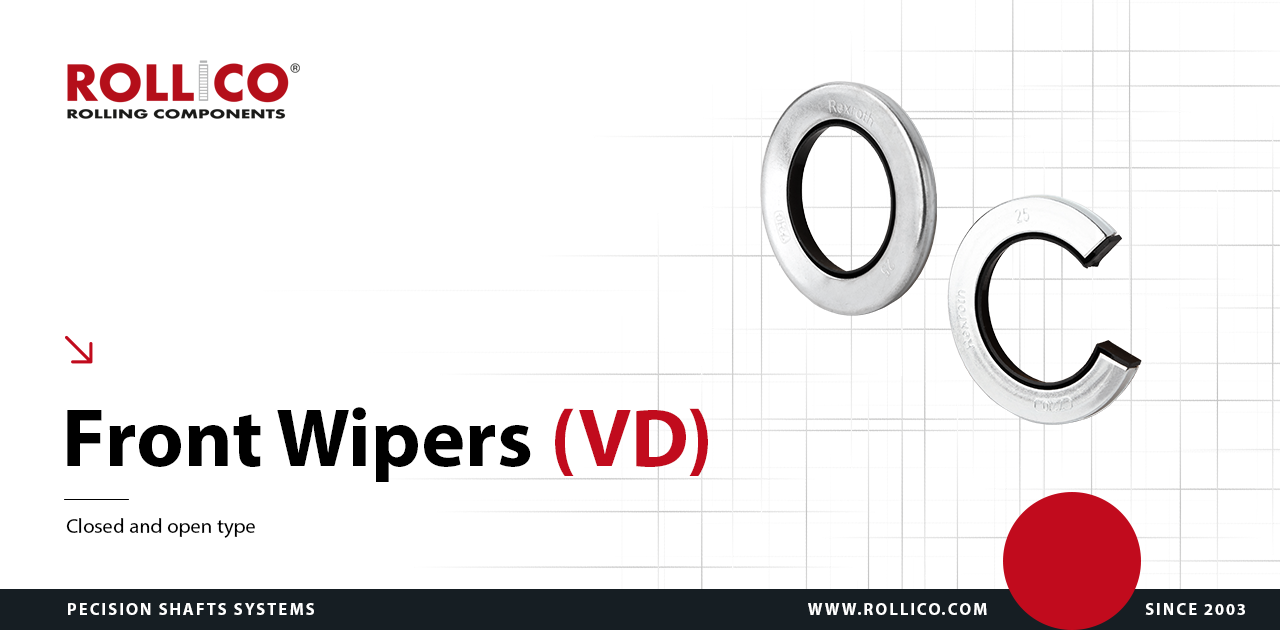

VD-type front wipers
Closed and open version
Closed and open version
Technical drawing of VD type front wiper.
Dimension table of VD type front wiper.
|
Type
|
Ød
|
ØD
|
T
|
(°)
|
|---|---|---|---|---|
|
VD-12
|
12
|
22
|
3.0
|
66
|
|
VD-16
|
16
|
26
|
3.0
|
68
|
|
VD-20
|
20
|
32
|
4.0
|
55
|
|
VD-25
|
25
|
40
|
4.0
|
57
|
|
VD-30
|
30
|
47
|
5.0
|
57
|
|
VD-40
|
40
|
62
|
5.0
|
56
|
|
VD-50
|
50
|
75
|
5.0
|
56
|
| All dimensions in the table are in [mm], unless stated otherwise. | ||||
Designation Method
|
|
VD
|
20
|
OP
|
|---|---|---|---|
| Series | |||
| Size | |||
| Open type |
