Linear ball bearings - MM

Linear ball bearings

Linear ball bearings are a crucial component of any linear guidance system. They enable smooth, precise, and failure-free motion along precision shafts, while minimizing friction and component wear.

MM

Product configurator

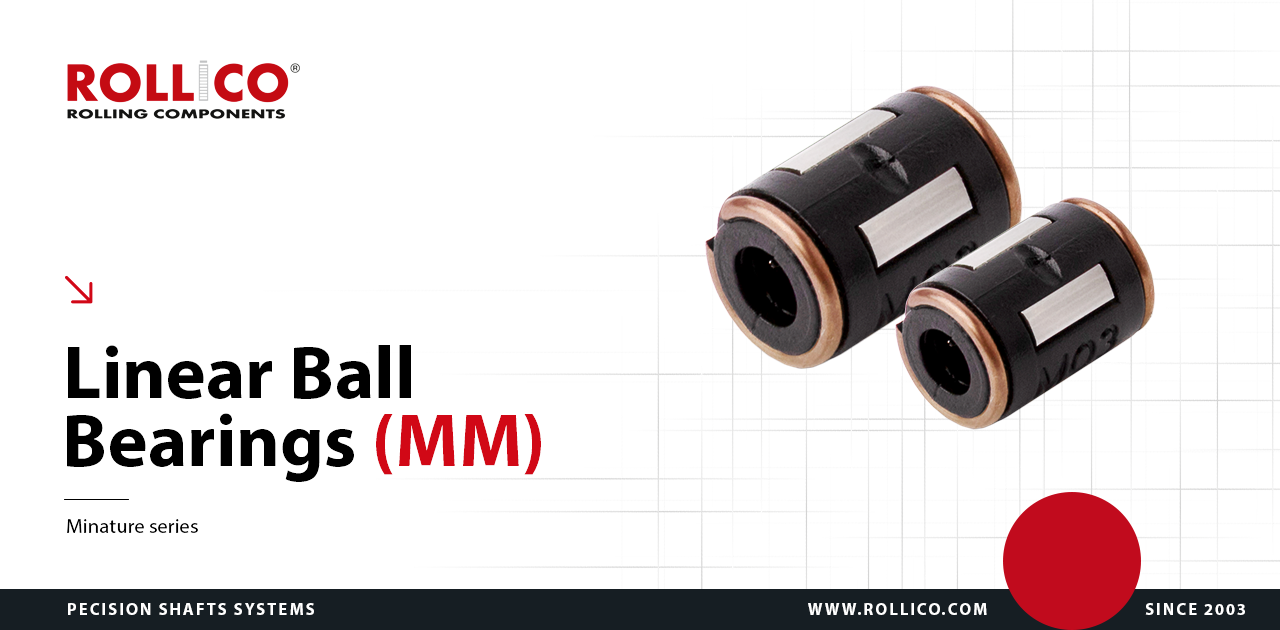

MM-type linear ball bearing
Minature series

Technical drawing of MM type linear ball bearing.

Dimension table of MM type linear ball bearing.

Type
Ød
ØD
L
L1
L2
min
n
ball tracks no.
Dyn. load capacity
C*
[N]
Stat. load capacity
C0*
[N]
Weight
[kg]
MM-03
3
7
10
-
-
4
45
50
0.001
MM-05
5
12
22
14.2
1.10
4
170
190
0.010
MM-08
8
16
25
16.2
1.10
4
310
340
0.020
MM-12
12
22
32
22.6
1.3
5
650
715
0.030
All dimensions in the table are in [mm], unless stated otherwise.
*Load capacity values are given for hardened and ground precision shafts (min. 59 HRC)
*For precision linear shafts of  lower hardness, the effective load capacitied equal:
- for WRA: Cef = 0,74·C   Coef=0,8·Co
- for WRB: Cef = 0,63·C   Coef=0,7·Co
Stainless steel version available upon request. MM-03 linear ball bearing available only without wipers.

Designation Method


MM
04
WW
Series
Size
Internal wipers

Precision

Sorting tolerance
up to 0.5 µm
