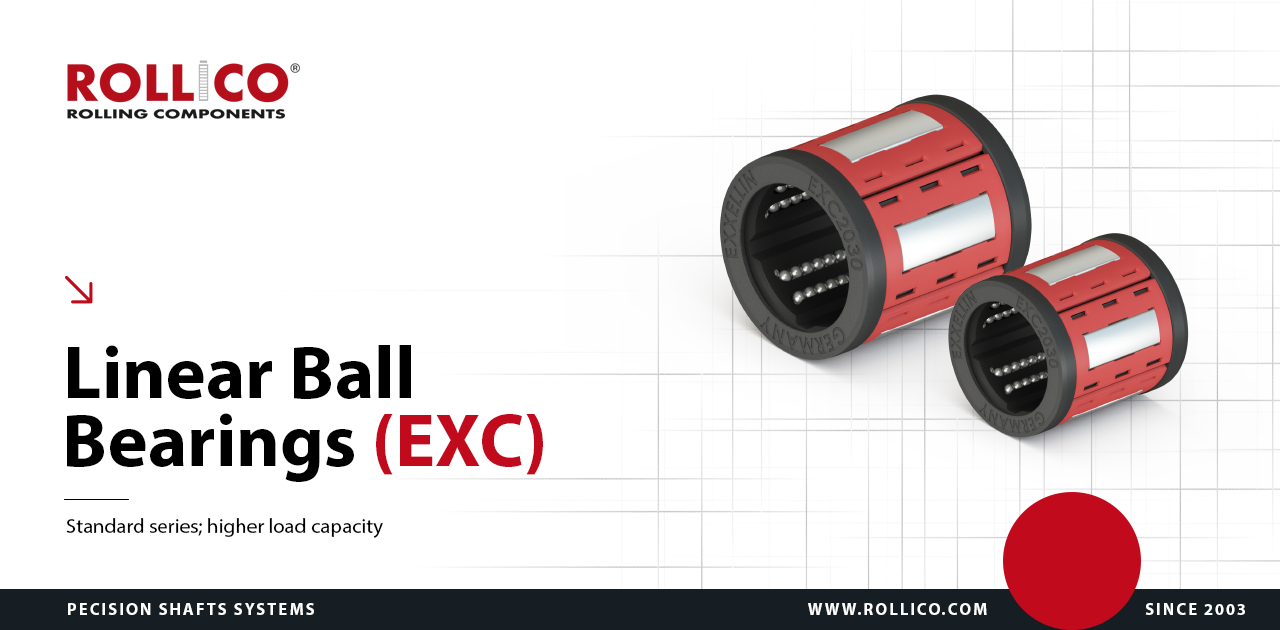

Linear ball bearings are a crucial component of any linear guidance system. They enable smooth, precise, and failure-free motion along precision shafts, while minimizing friction and component wear.
Technical drawing of ECX type linear ball bearing.
Dimension table of EXC type linear ball bearing.
Type
Ød
ØD
L
Weight
[g]
Dyn. load capacity C*
[N]
Stat. load capacity C0*
[N]
EXC12
12
19
28
11.4
866
757
EXC16
16
24
30
17.9
1224
1086
EXC20
20
28
30
20.7
1362
1204
EXC25
25
35
40
44.3
2575
2397
EXC30
30
40
50
68.7
3423
3541
All dimensions in the table are in [mm], unless stated otherwise.
*Load capacity values are given for hardened and ground precision shafts (min. 59 HRC)
*For precision linear shafts of lower hardness, the effective load capacitied equal:
- for WRA: Cef = 0,74·C Coef=0,8·Co
- for WRB: Cef = 0,63·C Coef=0,7·Co
Designation Method
EXC
20
F
PP
RB
Series
Size
Wersja z samowyrównaniem błędu prowadzenia
Internal wipers
Option with stainless steel bearing balls
Precision
Sorting tolerance
up to 0.5 µm
